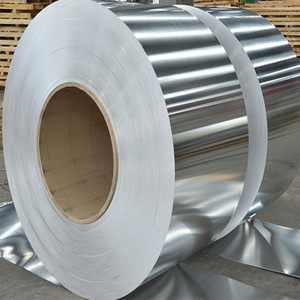

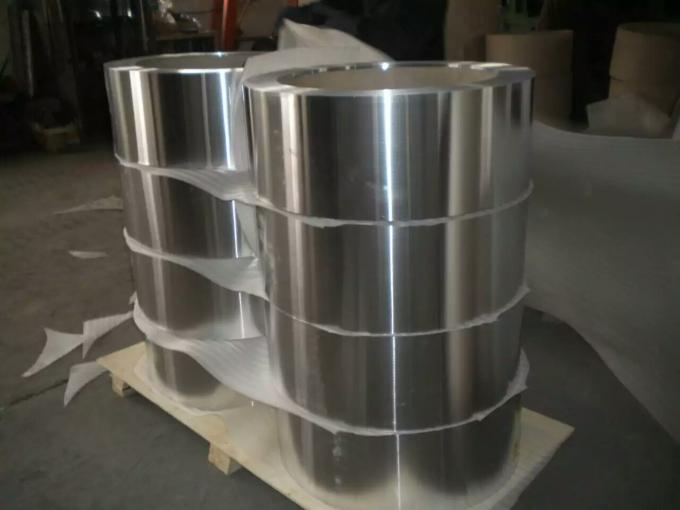

    Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance

    Ask Lasest Price
    Brand Name : NOONDAY
    Model Number : AA1050/ AA1060/ AA1070
    Certification : RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
    Payment Terms : L/C, T/T
    Supply Ability : 20, 000 Mt Per Year
    Delivery Time : according to specification and quantity
    • Product Details
    • Company Profile

    Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance

    Corrosion Resistance Decorative Aluminum Strips High Machining Precision


    Product Description


    1. Application: Dry-type transformer

    2: Alloy and Temper

    AA1070,1070A,1060,1050,1050A,1350 , Temper: O

    3 Specification and tolerance(mm)

    Table 1: thickness tolerance


    Thickness(Min)Thickness tolerance

    Standard

    (plus.minues)

    EN485GB/T3880-2006
    10001000~125010001000~1250
    0.2~0.4±0.02±0.02±0.040.02±0.03
    0.4~0.8±0.03±0.03±0.04~±0.060.03±0.04~±0.06
    0.8~1.1±0.04±0.04±0.06~±0.070.04±0.06~±0.07
    1.1~1.4±0.05±0.05±0.07~±0.090.05±0.07~±0.08
    1.4~2.0±0.06±0.06±0.09~±0.110.06±0.08~±0.09
    2.0~2.5±0.07±0.07±0.120.07±0.09
    2.5~3.0±0.08±0.08±0.130.08±0.12

    Table 2: edge curve


    Width(mm)Edge curve
    less than 150mml ess than 1/2000
    more than 150mmless than 2/2000

    Table 3: high grade edge curve(mm)


    width(more than)Curve(less than)
    25~1008
    100~3006
    300~6005
    600~10004
    1000~20003
    2000~25003

    4 Mechnical propety: As Per EN485

    5 : conductivity

    Under condition of annealing at temperature of 20℃,conductivity shall be :1/ρ20≥35.4m/Ω·mm2


    Corrosion Resistance Decorative Aluminum Strips High Machining Precision Corrosion Resistance Decorative Aluminum Strips High Machining Precision



    Our advantages:
    1, Since 2008, we have rich experience in this industry in China;
    2, Good reputation in the production of aluminium/aluminum plate areas;
    3, We start our productions from aluminum ingot,so we can control the quality as well;
    4, We have our own development department for new material research;
    5, Good experience and cooperation with big clients in the world;
    6, With Certificate ISO9001-2008;
    7, High performance cost ratio;
    8, Fast delivery time;
    9, Customized orders available;
    10, Good communication skills, and good service and understandings for customers.
