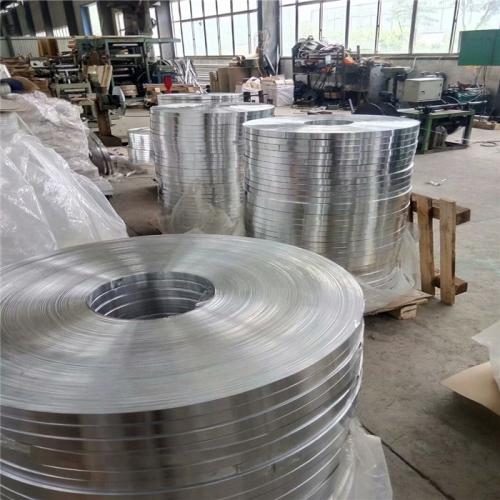

Customized Thin Aluminum Strips Natural Color High Machining Precision

    Buy cheap Customized Thin Aluminum Strips Natural Color High Machining Precision from wholesalers

    Buy cheap Customized Thin Aluminum Strips Natural Color High Machining Precision from wholesalers
    • Buy cheap Customized Thin Aluminum Strips Natural Color High Machining Precision from wholesalers
    • Buy cheap Customized Thin Aluminum Strips Natural Color High Machining Precision from wholesalers
    • Buy cheap Customized Thin Aluminum Strips Natural Color High Machining Precision from wholesalers

    Customized Thin Aluminum Strips Natural Color High Machining Precision

    Ask Lasest Price
    Brand Name : NOONDAY
    Model Number : AA8011/ AA3004
    Certification : RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
    Payment Terms : L/C, T/T
    Supply Ability : 20, 000 Mt Per Year
    Delivery Time : according to specification and quantity
    • Product Details
    • Company Profile

    Customized Thin Aluminum Strips Natural Color High Machining Precision

    Thickness 0.2-0.4mm AA8011/ AA3004 Thin Aluminium Strips For GLS Lamps / Tube Lights


    Product Description


    1. Detail explanation:

    GBS lamp cap stock combines strength and high formability with high resistance to softening in vitriting. Manufactured at

    modern

    and well-equipped mills, it can be rolled to very fine tolerances, allowing more caps per tonne of coil and enabling uninterrupted

    operations of high-speed forming presses.


    2. specification:


    Dimensions
    ParameterStock for bulb capsStock for Tube caps
    RangeToleranceRangeTolerance
    Thickness (mm)0.25 — 0.40+/-0.020.30 — 0.40+/-0.02
    Width (mm)50 — 500+/-0.3050 — 500+/-0.30
    Coil I.D (mm)without core 203-without core 203-
    Coil density (kg/mm)1.80 max-1.8 max-

    3. Mechnical Properties


    Mechanical properties
    TypeAlloy (AA)TemperUTS (mpa)%E (min)
    (50 mm gauge length)
    MinMax
    Stock for
    bulb caps
    3004O15020013
    5251O16521013
    Stock for
    tube caps
    8011H141251601
    H161501801

    4. Chemical composition


    Chemical composition
    Alloy (%)Stock for bulb capsStock for tube caps
    AA3104AA 3004AA 5251AA 8011
    Fe0.700.700.500.60 — 1.00
    Si0.300.300.400.50 — 0.90
    Mg1.20 — 1.600.80 — 1.301.80 — 2.400.05
    Mn0.80 — 1.301.00 — 1.500.10 — 0.500.20
    Cu0.100.250.150.10
    Zn0.250.250.150.10
    Ti--0.150.08
    Cr0.25-0.150.05
    Each (Others)0.050.050.050.05
    Total (Others)-0.150.150.15
    AlRemainderRemainderRemainderRemainder

    5. Surface quality

    Surface has a corrosion resistant oil coating.


    6. Applicable standards

    ASTM - B - 209M, Aluminium association — aluminium standards and data


    7. Packing

    Lamp cap stock is placed on wooden skids in an eye-to-wall position. It is wrapped in HDPE fabric and hardboard and strapped with hoop iron. Moisture protection is ensured with silica gel packets and the entire packed product is placed in a wooden box.

    8. Applications :

    GLS lamps and tube lights


    AA8011/3004 Thin Aluminium Strips For GLS Lamps / Tube Lights Thickness 0.2-0.4mm


    Our advantages:
    1, Since 2008, we have rich experience in this industry in China;
    2, Good reputation in the production of aluminium/aluminum plate areas;
    3, We start our productions from aluminum ingot,so we can control the quality as well;
    4, We have our own development department for new material research;
    5, Good experience and cooperation with big clients in the world;
    6, With Certificate ISO9001-2008;
    7, High performance cost ratio;
    8, Fast delivery time;
    9, Customized orders available;
    10, Good communication skills, and good service and understandings for customers.
