    8x4 Aluminium Chequered Sheet , Aluminium Tread Plate Sheet Custom Size Pattern

    Ask Lasest Price
    Brand Name : NOONDAY
    Model Number : AA1060/ AA1100/ AA3003/ AA5052
    Certification : RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
    Payment Terms : L/C, T/T
    Supply Ability : 50, 000 Mt Per Year
    Delivery Time : according to specification and quantity
    • Product Details
    • Company Profile

    8x4 Aluminium Chequered Sheet , Aluminium Tread Plate Sheet Custom Size Pattern

    Aluminum Anti-skid Plate


    Product Description:



    Main alloy: AA1100/ AA1060/ AA3003/ AA5052

    Main Specification:

    thickness: 0.8mm - 15mm

    width: 850---1220mm

    Checked height: 0.8--1.3mm

    Main application:building(floor) platforms,ships and carriage lights,trucks and cold storage,refrigerators,

    air conditioners, suspension beams


    Pattern of checked plates: According to the pattern type, the pattern aluminum plate can be divided into one bar, two bars, three bars, four bars, and five bars.

    Main function:anti-skid


    Main features:
    - The five-gluten pattern board is also called the willow shape pattern board, pattern aluminum plate.

    - It has good anti-skid ability and is widely used in the design of building(floor) platforms. Since the patterns on the surface of the aluminum plate are arranged in relative parallel according to five concave patterns

    - the angle between each pattern and other patterns is 60-80 degrees,

    - Checked height is usually from 0.6mm--1.2mm
    - Flower lengths are 42mm and 34mm, respectively.

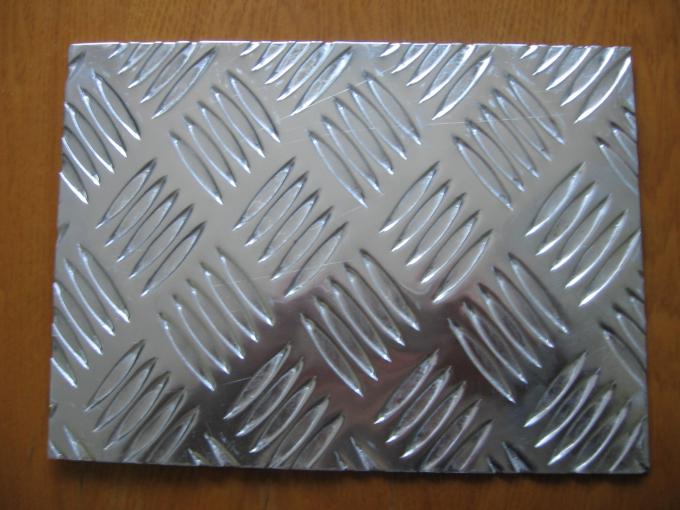

    5 Bar Aluminium Checker Plate Sheet Custom Pattern Checked Height 0.6mm--1.2mm 5 Bar Aluminium Checker Plate Sheet Custom Pattern Checked Height 0.6mm--1.2mm


    Detail application: Different patterns, application areas are also different. For example, when packaging or wrapping pipes, you use rhomboid aluminum plates. In addition, floral plates are also very common in furniture. Such as refrigerators, air conditioners, suspension beams, table feet, decorative strips, handlebars, wire slots and so on.
    The alloys of the five tendons are mainly 1, 3, and 5. The 1060 has a lower price for flower plates and can use ordinary cold storage, floors and other environments. The 3-series aluminum plate represented by 3003 is also an anti-rust aluminum. Its strength is somewhat higher than that of the 1 series, but its hardness and anti-rot properties are not as good as those of the 5 series. Therefore, it is generally used in trucks and cold storage. The 5-series aluminum plates represented by 5052 and 5083 have good performance, high hardness, good rust resistance, and corrosion resistance. Therefore, it can be used in humid environments such as ships and carriage lights.


    5 Bar Aluminium Checker Plate Sheet Custom Pattern Checked Height 0.6mm--1.2mm 5 Bar Aluminium Checker Plate Sheet Custom Pattern Checked Height 0.6mm--1.2mm


    Our advantages:
    1, Since 2008, we have rich experience in this industry in China;
    2, Good reputation in the production of aluminium/aluminum plate areas;
    3, We start our productions from aluminum ingot,so we can control the quality as well;
    4, We have our own development department for new material research;
    5, Good experience and cooperation with big clients in the world;
    6, With Certificate ISO9001-2008;
    7, High performance cost ratio;
    8, Fast delivery time;
    9, Customized orders available;
    10, Good communication skills, and good service and understandings for customers.
